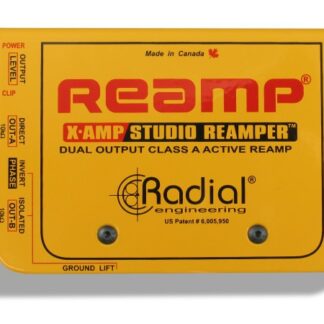

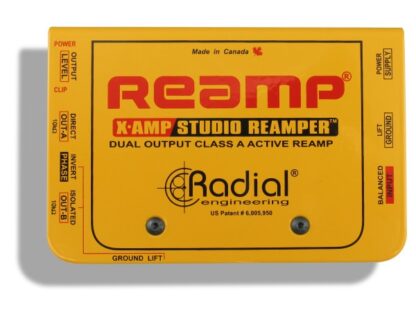

Radial X-Amp Active Re-Amplifier

Description

The Radial X-Amp™ is an active Reamper™ that allows the engineer to play a pre-recorded track back through guitar amplifiers and pedals. This opens the door to new possibilities and enhances the creative process so that your recording stands out.

Following the critically acclaimed Radial JD7™ Injector, the X-Amp employs a unique class-A circuit design that has been optimized for use with guitars. Features include balanced line level input with LED peak indicator and level control, class-A circuit topology for optimal reach and frequency response, a transformer isolated output to eliminate hum and buzz caused by ground loops, a 180° polarity reverse switch to bring both amps into phase, and a dual ground lift switch for noise-free operation. =+= Technical Specification
Audio circuit type
100% discrete class-A
Frequency response
20Hz ~ 15kHz (± 1.0dB)
Dynamic range
119dB
Total harmonic distortion
0.02% @ -15dBu
Intermodulation Distortion
0.02% @ -20dBu
Input Impedance
600Ω
Noise
OUT-1 -110dB; OUT-2 -108dBu
Maximum Input
+22dBu
Features
180° polarity reverse, Ground lift, Level Control
Input Connectors
XLR
Output Connectors
1/4″ Isolated and Direct
Construction
14 gauge steel chassis & outer shell
Size (L x W x D)
3.3″ x 5.0″ x 2″ (84 x 127 x 48mm)
Weight
1.55lb (720g)
Shipping size (L x W x D)
5″ x 2.75″ x 10.75″ (127 x 70 x 273mm)
Shipping weight
2.6lb (1.18kg)
Power
+15VDC/400mA adapter included
