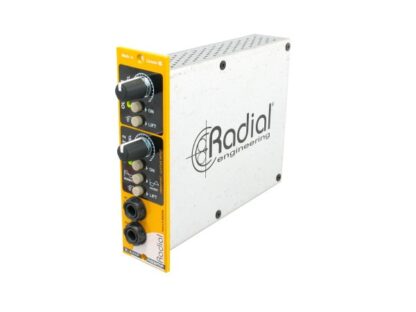

Radial Workhorse X-Amp 500 Series – Active Reamper

Description

Using the X-Amp is ‘plug and play’ easy to use. The design begins with an XLR balanced line level input located on the 500 series rear panel that feeds the X-Amp. To ensure the very highest fidelity, 100% discrete class-A circuitry is employed. The X-Amp unbalances and buffers the pre-recorded signal where it then feeds two transformer isolated hi-Z guitar level outputs. The ¼” jacks are front mounted for desk-top convenience and equipped with ground lifts to help eliminate hum and buzz caused by ground loops. Independent level controls enable you to adjust the drive going to each amp for optimal tone. Should one of the amps be out of phase, depressing the 180º quickly brings both in line. =+= Technical Specification
Audio circuit type
Class-A discrete, transformer coupled
Frequency response
20Hz~20kHz (adjusted for guitar signals -5dB@20kHz) w 100K Ω load
Total harmonic distortion
<0.002% @ 0dBu (20Hz~20kHz) Intermodulation Distortion <0.04% @ 0dBu input Input Impedance XLR: 1.2k Ohms Output Impedance XLR: 600 Ohms Noise -114dB below 0dBu Maximum Input +26dBu Voltage Gain XLR to XLR: 0dB ±0.5dB | Omniport to XLR: -3dB ±0.5dB | XLR to 1/4": -0.6dB ±0.5dB Data Compression 40mA, ±16VDC 180° polarity reverse, Ground lift, OmniPort Input Connectors XLR Output Connectors XLR, 1/4" Extras OmniPort configured as Hi-Z guitar input Size (L x W x D) Standard 500 series rack format Shipping weight 1.5lbs (0.7kg) Conditions For use in dry locations only between 5°C and 40°C
