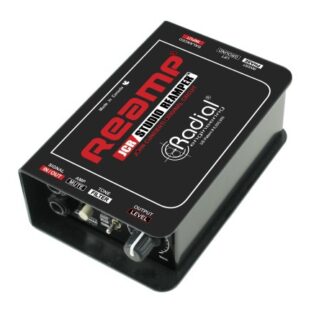

Radial JCR – Passive Studio Reamper

Description

The Radial Reamp JCR is the latest version of the original Reamp that was designed and patented by John Cuniberti. It features a 100% passive design with John’s original custom wound ‘Made in the USA’ transformer and circuit. The latest Radial version features separate XLR and ¼” TRS input connectors, variable output level plus a three-position filter that lets you tame excessive highs, warm up the lows or simply bypass if you want to revert to the original circuit. An on-board mute function has also been added to allow you to shut off the signal going to the amps when making adjustments or moving mics around the studio. =+= Technical Specification
Audio circuit type
Passive, transformer isolated
Frequency response
20Hz ~ 20kHz (+0dB/-1dB)
Dynamic range
140dB
Total harmonic distortion
0.001% @ 1kHz/0dBu input
Intermodulation Distortion
0.0025% @ 1kHz/-10dB input
Phase Deviation
2º @ 100Hz; 0º @ 800Hz
Input Impedance
1800 Ohms
Output Impedance
4.8k Ohms
Common Mode Rejection Ratio
-55dB @ 55Hz
Noise
-115dBu
Maximum Input
+26dBu
180° polarity reverse, Ground lift, HPF, LPF, Level Control
Input Connectors
1/4″ TRS, XLR
Output Connectors
1/4″ unbalanced
Construction
14-gauge steel chassis & outer shell
Size (L x W x D)
3.3″ x 5.0″ x 2″ (84 x 127 x 48mm)
Weight
1.32lb (600g)
Shipping size (L x W x D)
4″ x 3″ x 6.5″ (102 x 76 x 165mm)
Shipping weight
1.85lb (840g)
Power
Passive, no power required
Conditions
For use in dry locations only between 5°C and 40°C
