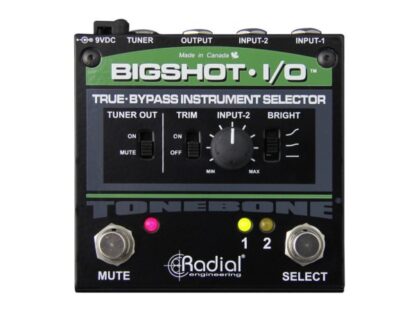

Radial BigShot i/o – True Bypass Instrument Selector

Description

The BigShot i/o is a true-bypass instrument selector that allows you to instantly switch between two instruments whilst feeding them to your amplifier and balancing the levels. The true-bypass feature retains the tone of your instrument whilst the separate tuner and mute footswitch allows for silent tuning. Input 2 has its own volume control in order to reduce the input sensitivity of the instrument to ensure that the levels are matched when played through your amplifier. =+= Technical Specification
Audio circuit type
Passive, true bypass
Frequency response
20Hz – 20kHz
Gain
-0.3dB
Features
Dim Switch, Bright Switch
Input Connectors
¼” jack for first instrument connection Input-2, ¼” jack with dim and bright controls
Output Connectors
¼” jack is switchable between always-on, or engaged by Mute switch
Extras
Tuner/toggle switch
Construction
14-gauge steel
Finish
Durable powder coat
Size (L x W x D)
3.9″ x 3.6″ x 2″ (99 x 91.4 x 50.8mm)
Weight
1.25 lb (0.56 kg)
Shipping size (L x W x D)
6.25″ x 4.25″ x 3″ (158.7 x 108 x 76.2mm)
Shipping weight
1.55 lb (0.70 kg)
Power
9VDC, center pole negative
Conditions
For use in dry locations only between 5°C and 40°C
Warranty
Radial 3-year, transferable
