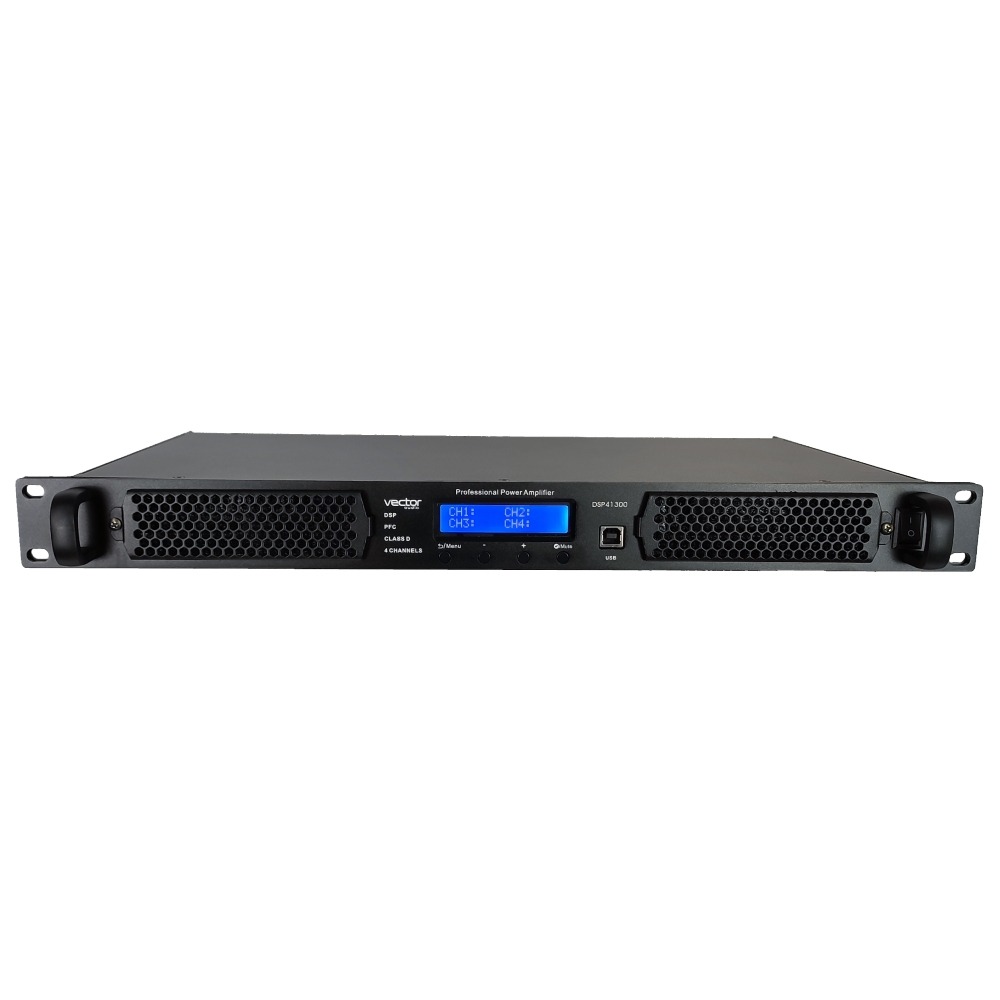

Vector DSP41300 4x1300W@4ohm, 19" 1U

Vector DSP41300 4x1300W@4ohm, 19″ 1U

The Vector DSP series advanced Class D amplifiers bring together efficiency, reliability and high power into one sleek, light weight 1U unit. With built-in digital signal processing you can control the route, gain, phase, EQ, delay, frequency, compression & limitation of your speaker system. Vector DSP models are perfectly suited for touring, live & corporate…

£1,956.00
+
-
Category:
Brands:

Description

The Vector DSP series advanced Class D amplifiers bring together efficiency, reliability and high power into one sleek, light weight 1U unit. With built-in digital signal processing you can control the route, gain, phase, EQ, delay, frequency, compression & limitation of your speaker system. Vector DSP models are perfectly suited for touring, live & corporate events or fixed installation into bars, pubs, clubs, schools, houses of worship etc. Models include 2 & 4 channel variants all with LCD display and four button control as well as a USB interface for PC setup.
Circuit Category:- CLASS D
4 x 1300w @ 4ohms.
4 x 800w @ 8ohms.
2 x 2600w @ 8ohms Bridged Mode
THD:- 0.035% @ 8O, 1kHz 1/8 Rated Power
IMD:   0.15% @ 8O, 1kHz 1/8 Rated Power
S/N Ratio (20Hz-20kHz, 4Ohms):- >106db A
Cross-talk (1kHz,4 Ohms):- >40dB
Frequency Response:- 10Hz to 20Khz +/-1dB
Input Impedance:- Balanced 20K / Non Balanced 10K
Dampening Factor (10-400Hz,8 Ohms):- 600
Slew Rate:- 20V/us
Input Sensitivity:- 0.775V, 0 dB
Protection Fuctions:- Limiter, Short Circuit, Overload, Overheat, Direct Current, Radio Interference
Voltage Gain:- 40.8/38.6/32
Output Connectors:-  Speakon
Input Connectors:-  XLR
Finish: Black
Rack Space: 1U
Dimensions: H44 x W483 x D230mm
Weight: 8kg
