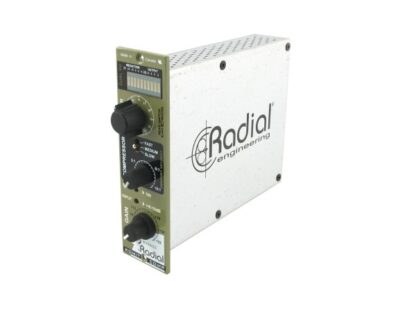

Radial Workhorse Komit 500 Compressor

Description

The Komit provides superior dynamics control that one would expect from a studio grade compressor/limiter, along with vintage character and tone to help your tracks stand out in the mix. A transparent VCA compressor is easily configured with a three-position switch to set the speed of the attack & release times, a variable compression ratio, and a makeup gain control. This is augmented with an old school diode-bridge clipping limiter, with ten settings that increasingly clip the input signal for results that range from subtle analog clipping to over-the-top distortion. The limiter can also be set for brick wall operation to prevent overloading digital recorder inputs, and both the inputs and outputs feature vintage style Hammond broadcast transformers add extra warmth to the signal path. =+= Technical Specification
Audio circuit type
Feed Forward with True RMS Sidechain.
Frequency response
20Hz~20kHz, -2dB @ 20Hz
Total harmonic distortion
0.025% @ 1 kHz.
Intermodulation Distortion
< 0.1% @ 80Hz/3kHz Input Impedance 9.6k Ohms Output Impedance 140 Ohms Maximum Output +22dBu Data Compression 72mA, ± 16VDC Conditions For use in dry locations only between 5°C and 40°C
