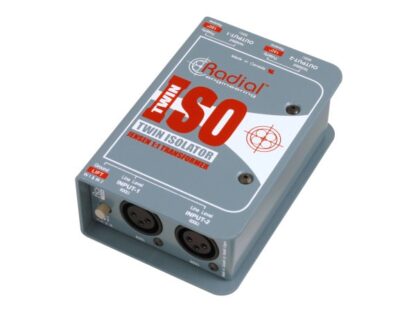

Radial Twin-Iso Two Channel Line Level Isolator – Jensen

Description

The Twin-Iso provides a simple and professional way to remove hum and buzz from ground loops by inserting it between any two pieces of balanced audio equipment. It comes equipped with two premium Jensen transformers that deliver exceptional frequency response from 20Hz to 20kHz, with low distortion and the ability to handle high signal levels without saturation – ensuring that the signal integrity of your audio is always maintained. Connect the Twin-Iso between any line-level audio devices, including consoles, amp racks, remote towers, and recorders, and remove ground loops in an instant. =+= Technical Specification
Audio circuit type
Passive line-level isolation, transformer based
Transformer
Jensen Transformer
Number of channels
Stereo (dual mono)
Frequency response
10Hz ~ 50KHz (± 1dB)
Dynamic range
135dB
Total harmonic distortion
0.001% @ 1kHz, +4dBu output
Phase Deviation
0.5° @ 100Hz; 37° @ 20Hz
Input Impedance
600Ω, balanced
Output Impedance
600Ω, balanced
Maximum Input
+21dBu @ 1kHz, 1% THD+N
Ground lift
Input Connectors
2 XLR-F inputs
Output Connectors
2 XLR-M outputs
Conditions
For use in dry locations only between 5°C and 40°C
