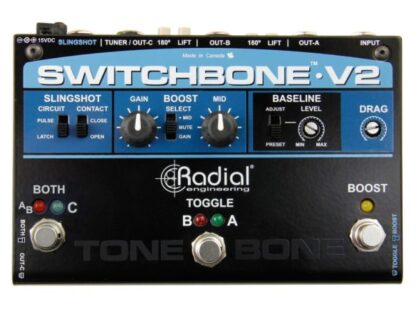

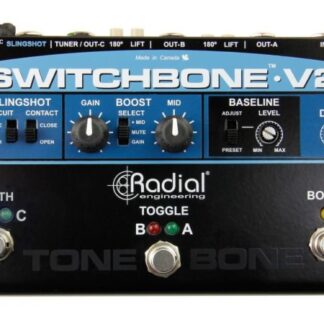

Radial Switchbone V2 – High Perfromance ABY Amp Selector

Description

The Switchbone V2 amp switcher and booster gives you the ability to control your two- or three-amp setup and allows you to switch between amplifiers whilst eliminating buzz and hum from ground loops and use the clean boost for solos. The Switchbone V2 also utilises Drag™ control load correction to give you a natural tone. =+= Technical Specification
Audio circuit type
Discrete Class-A
Gain
Unity to +12dB (Baseline gain)
Input Impedance
Variable with drag control
Output Impedance
10k Ohm
Noise
-111dB
Features
180° polarity reverse, Ground lift, Boost
Input Connectors
1/4″ input
Output Connectors
4 1/4″ outputs
Construction
14-gauge steel chassis & outer shell
Size (L x W x D)
6.62″ x 4.5″ x 2″ (168 x 114 x 51mm)
Weight
2.35lb (1.07kg)
Shipping size (L x W x D)
10.75″ x 4.75″ x 2.5″ (273 x 120 x 64mm)
Shipping weight
3.35lbs (1.5kg)
Power
15VDC 400mA, center pole positive
Conditions
For use in dry locations only between 5°C and 40°C
Warranty
Radial 3-year, transferable
