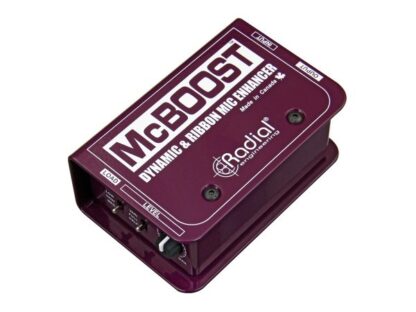

Radial McBoost – Mic Signal Booster 25dB for Dynamic and Ribbons

Description

The Radial McBoost provides clean gain at the source for low-output dynamic and ribbon microphones, driving long cable runs with ease and allowing you to connect to any preamp as if it were a high-gain ribbon mic pre. Simply connect the McBoost in-line using standard XLR cables and activate 48V phantom to provide power, then select between three impedance settings to optimise the response from the microphone. The McBoost will elevate the output to produce added clarity, excitement and extra drive for long cables whether you are in a recording studio, on a live concert stage, or in a broadcast center. =+= Technical Specification
Audio circuit type
Class-A Differential DC Coupled FET
Frequency response
<7Hz to >30kHz
Dynamic range
116dB
Gain
+26dB Full Gain, +20dB Half Gain, +4dB to +25dB Variable Gain
Clip Level
+16dBu (output)
Total harmonic distortion
0.01%
Intermodulation Distortion
0.01%
Phase Deviation
<10° Input Impedance 600Ω / 2.7kΩ / 30kΩ Output Impedance 220Ω Common Mode Rejection Ratio >50dB
Equivalent Input Noise
-125dBu
Noise
-100dBu / -110dBu
Input Connectors
XLR female output
Output Connectors
XLR male output
Construction
Cold Rolled Steel
Power
Phantom Power – 48V
Conditions
For use in dry locations only between 5°C and 40°C
