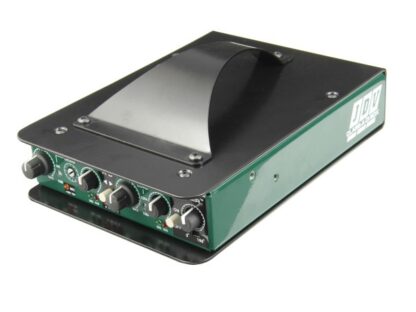

Radial JDV MK 5 Discrete Class A “Super DI”

Description

The JDV makes no compromises on available features or audio quality, opting instead to provide anything you could ever ask of a high-performance DI box. Designed for studio recording or pro-touring applications, the JDV provides exceptional headroom with massive 30-Volt internal rails, resulting in virtually zero distortion and producing an incredibly transparent and natural representation of your instrument. It has two inputs which can be individually selected or blended together and phase-aligned, with the ability to handle condenser mic’s, piezo transducers, and the outputs of effectively any instrument. The balanced output can be set to mic or line-level, allowing you to bypass an additional preamp and connect directly to a recording interface for pristine studio recordings. =+= Technical Specification
Audio circuit type
Proprietary analog circuit with low-noise op-amp
Number of channels
2
Frequency response
20Hz – 20KHz
Dynamic range
107db
Gain
+25db
Clip Level
+17dBu
Total harmonic distortion
0.00%
Input Impedance
Drag on: Variable from 22K Ω ~ 500K Ω Drag off: 10M Ω
Output Impedance
400 Ω
Common Mode Rejection Ratio
-80dB
Equivalent Input Noise
-90dbu
Input pad, 180° polarity reverse, Ground lift, HPF, Drag Control, Level Control, Phase Adjustment, Phantom Power, Remote Footswitch
Input Connectors
2 x unbalanced 1/4″, Mic Input unbalanced 1/4″
Output Connectors
XLR, 1/4″ thru
Extras
Tuner Output
Construction
14-gauge steel chassis and outer shell
Size (L x W x D)
5″ x 6.25″ x 2″ (127 x 159 x 51mm)
Weight
2.80lbs (1.28 kg)
Power
External 100V – 240V AC with 48V phantom
Conditions
For use in dry locations only between 5°C and 40°C
