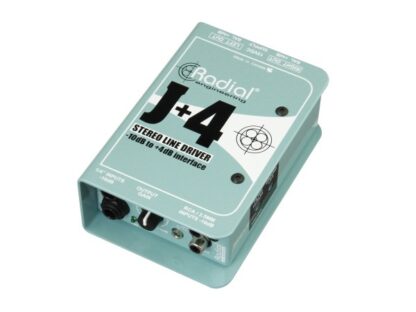

Radial J+4 Balanced -10dB to +4dB Signal Stereo Line Driver

Description

The J+4 allows you to boost nearly any stereo signal up to a +4dB balanced line level output, which can be sent over long distances without signal loss and connected directly to pro audio equipment such as mixers or recording interfaces. Multiple input connectors are available for integration with a variety of devices, including a stacked set of ¼” jacks for DJ mixers or keyboards, RCAs for CD players and a mini 3.5mm jack for smartphones and tablets. The J+4 delivers exceptional sonic performance, and is able to provide clean gain and eliminate noise by combining the advantages of active signal buffering with transformer isolation. =+= Technical Specification
Audio circuit type
Active -10dB ~ +4dB line converter, transformer isolated
Number of channels
2
Frequency response
20Hz ~ 20KHz (± 2dB)
Dynamic range
102dB
Total harmonic distortion
0.004% @ 1kHz, +10dBu output
Phase Deviation
0.5° @ 100Hz; 4° @ 20Hz
Input Impedance
10k Ohms, unbalanced
Output Impedance
1.6k Ohms, balanced
Maximum Input
+17dBu @ 1kHz, 1% THD+N
Maximum Output
+15dBu @ 1kHz, 1% THD+N
Ground lift, HPF, Level Control
Input Connectors
1/4″, RCA, 3.5mm
Output Connectors
XLR
Construction
14-gauge steel
Size (L x W x D)
84 x 127 x 48mm (3.3″ x 5.0″ x 2″)
Weight
0.70 kg (1.55 lbs)
Shipping size (L x W x D)
102 x 76 x 165mm (4″ x 3″ x 6.5″)
Shipping weight
.87 kg (1.92 lbs)
Power
+15VDC/400mA adapter Included
Conditions
For use in dry locations only between 5°C and 40°C
