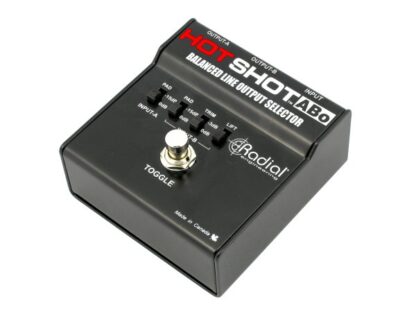

Radial HotShot ABo -Line Output Selector

Description

The Hotshot ABo takes a balanced XLR input and provides the ability to switch the signal between two destinations using a passive footswitch on stage. This makes it ideal for a variety of applications, including driving two channels on a mixing console for dry and wet effects routing, diverting a dynamic mic from the PA system to the monitors or an intercom system, or for temporarily muting the signal when coughing. The ABo uses a latching footswitch, so it will stay on the last output selected until you hit the footswitch again. =+= Technical Specification
Audio circuit type
Passive, true-bypass
Frequency response
20Hz ~ 20kHz
Dynamic range
Unlimited
Input pad, Ground lift
Input Connectors
One XLR input
Output Connectors
Two XLR outputs
Construction
14-Gauge Steel
Size (L x W x D)
3.9″ x 3.6″ x 2″ (99 x 92 x 51mm)
Weight
1.25 lb (0.56 kg)
Conditions
For use in dry locations only between 5°C and 40°C
