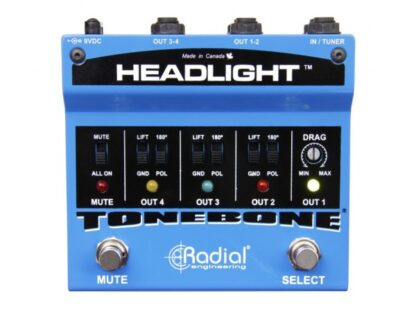

Radial Headlight – 4 Output Guitar Amp Selector

Description

The Headlight guitar amp selector allows you to switch between four amplifiers with a single switch. With its compact size, the Headlight fits easily onto your pedalboard. The amp selector includes a mute switch for on-stage tuning, as well as isolated outputs to remove any hum or buzz caused by ground loops. =+= Technical Specification
Audio circuit type
Classic Class-A FET
Frequency response
30Hz – 30kHz
Dynamic range
116dBu
Gain
-0.5dBu
Clip Level
+7dB
Total harmonic distortion
0.01%
Intermodulation Distortion
0.02%
Phase Deviation
-1.35° @ -20dBu / 1kHz
Input Impedance
20k to 1MΩ
Output Impedance
1kΩ
Noise
-112dBu
Maximum Input
+8dB
Features
180° polarity reverse, Ground lift, Drag Control
Input Connectors
1/4″
Output Connectors
1/4″
Construction
14-Gauge Steel
Size (L x W x D)
5″ x 4.7″ x 2″
Weight
2lb
Shipping size (L x W x D)
6.5″ x 5.1″ x 2.5″
Shipping weight
2.4lb
Power
9V adaptor / 80mA (Center Pin Negative)
Conditions
For use in dry locations only between 5°C and 40°C
Warranty
Radial 3-year, transferable
