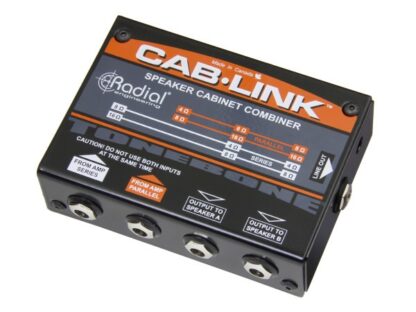

Radial Cab-Link Guitar Cabinet Switcher

Description

Whether you want to wire up your cabinets in series or in a parallel configuration, the Cab-Link makes things easy. Simply connect two speaker cables from the Cab-Link outputs to each of your cabinets, and a third speaker cable from the output of the amp head to either the series or the parallel input. The Cab-Link reconfigures automatically depending on which input is used, and a handy guide on the top of the unit lets you know which input should be used to best match the impedance between your amp and the cabinets. A line output with a level control provides additional functionality and can be used to feed the input of another amplifier or an effects unit. =+= Technical Specification
Audio circuit type
100% passive
Maximum Power Rating
400W
Level Control
Input Connectors
1/4″ Series or Parallel
Output Connectors
1/4″ Speaker A, Speaker B, Line Out
Extras
Trim Control for Line Out
Construction
14-gauge steel chassis & outer shell
Size (L x W x D)
4.63″ x 3.25″ x 1.38″ (11.8cm x 8.3cm x 3.5cm)
Weight
1.16lb (0.52kg)
Shipping size (L x W x D)
6.25″ x 4.25″ x 3″ (15.9cm x 10.8xm x 7.6cm)
Shipping weight
1.46lb (0.7kg)
Power
Passive, no power required
Conditions
For use in dry locations only between 5°C and 40°C
