FBT J8A W 2-way Active speaker – 8″ + 1″ – 200Wrms+50Wrms. White RAL9016

Description

Processed Active Monitor

200W+ 50W RMS – 124 dB SPL

Applications

Band P.A.

Personal monitor

Small theatres

Auditoriums

Piano bar

DJ

Stage monitor

Conference rooms

Fixed installations in live clubs

Pubs

Gyms

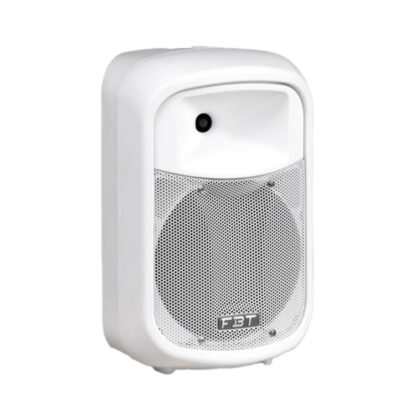

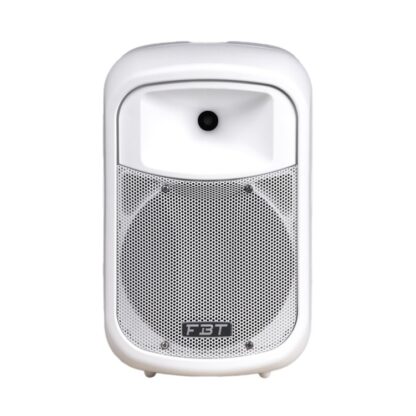

The FBT J8A series speakers feature lightweight, yet rugged gas injected moulded polypropylene cabinet construction. Available in black or white finish the FBT J8A series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor.

The asymmetrical shape of the FBT J8A cabinet also allows use as a powered floor stage monitor.

The FBT J8A is of two way design incorporating an 8″ low frequency woofer and 1″ HF custom compression driver coupled to a 90°H x 60°V horn. The active internal crossover is at a fixed frequency of 2.5kHz. With a frequency range of 60Hz – 20 kHz the FBT J8A speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 124 dB.

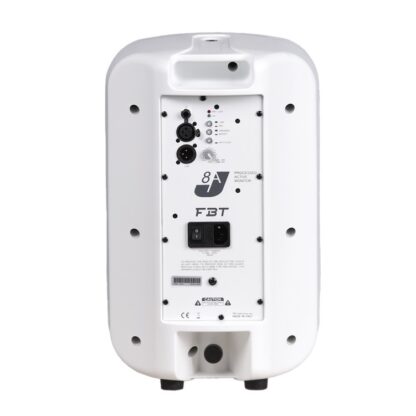

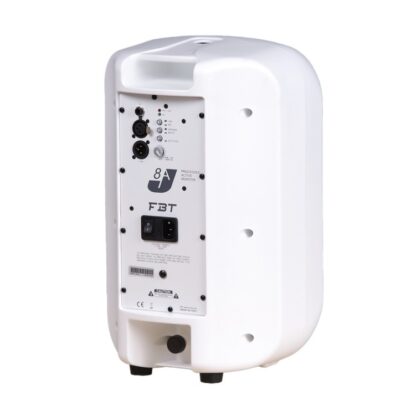

A front face steel grille protects the speaker from external damage. The bi-amplified FBT J8A active speaker feature a 200W RMS low frequency amp and a 50W RMS high frequency amp. The control panel features a level control, HP filter switch, mic/line selector, preset switch (original, boost) led

power on, protection/limiter led indicators, a balanced XLR and Jack in, a balanced XLR link out .

The two M6 fly points built into the cabinet along with the optional mounting brackets allow the FBT J8A speaker to be surface mounted on walls or ceilings. Standard 1,38″ speaker stand socket allows the FBTJ8Ato be mounted on speaker stand.
