Beyerdynamic TG D58 Clip-on condenser mic

Description

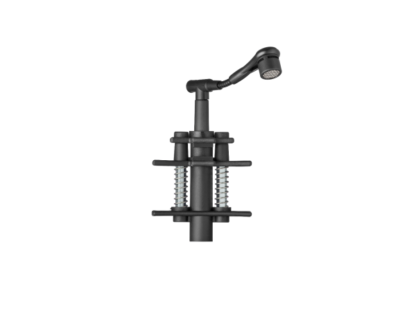

The practical advantages of the patented microphone clamp on the TG D58 condenser microphone are immediately apparent whether when using with rack toms, snare drums or percussion instruments: the microphone can be mounted and positioned quickly and securely.

Check out the TG D58 in action below as a crucial part of that drum sound. =+= Technical Specification
Transducer type
Condenser (back electret)
Operating principle
Pressure gradient
Polar pattern
Cardioid
Close miking
20 – 20,000 Hz
Distant miking (measured at 1 m)
35 – 20,000 Hz
Open circuit voltage
5 mV/Pa (-46 dBV) ±2.5 dB
Nominal impedance
200 Ω
Load impedance
≥ 1 kΩ
Max. SPL at 24 V and 48 V phantom power
140 dB
S/N ratio
59 dB [CCIR; Q-Peak], 70 dB [A; RMS]
Equivalent SPL
35 dB [CCIR; Q-Peak], 24 dB [A; RMS]
Power supply
Phantom power: 12 – 48V (recommended: 48 V)
Power consumption
4.7 mA
Connection
XLR, 3-pin, male
Clamp (W x H)
85 x 118 mm
Gooseneck length
20 mm
Weight
approx. 140 g
