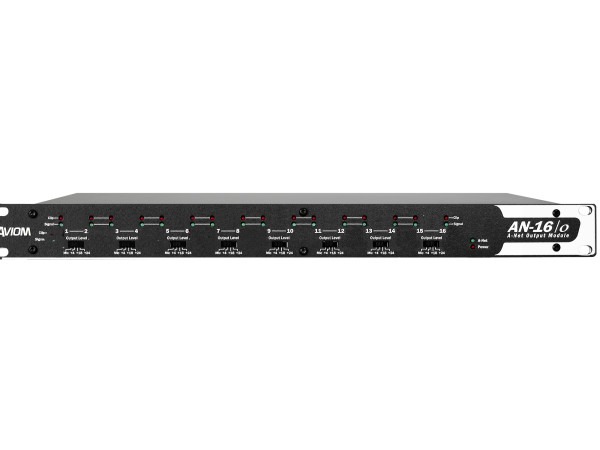

Aviom AN-16 / o v.4 Output Module

Description

The AN-16/o v.4 Output Module connects to any Pro16 input module, console card, or A-Net distributor and provides 16 balanced line-level analog outputs using two DB25 multi-pin connectors. Four output levels, from mic to +24dBu, are available to easily accommodate the input level requirements of the device the AN-16/o v.4 output signals are being connected to.

Use the AN-16/o v.4 anywhere analog outputs are required: with the A640 and A360 and D800’s Network Mix Back feature for wireless in-ears, on stage or at FOH in a digital snake, in the studio, or for a recording split. Adding a digital split to a Pro16 system is as simple as connecting an additional AN-16/o v.4 Output Module.

Compatibility Note: AN-16/o v.4 Output Modules with serial numbers 51162 and lower (from 2013 and before) are only compatible with the original version of the Pro16 A-Net protocol and not the higher channel count Pro16e version of A-Net. The Pro16e version of A-Net is used by the AN-16/i v.2 as well as the D800 and D400 series of A-Net Distributors.

FEATURES
• 16 balanced mic- or line-level outputs
• Four-position output level switch per channel pair
• +24, +18, and +4dBu line-level, or mic-level outputs
• 48kHz, 24-bit D/A converters
• DB25 output connectors =+=
